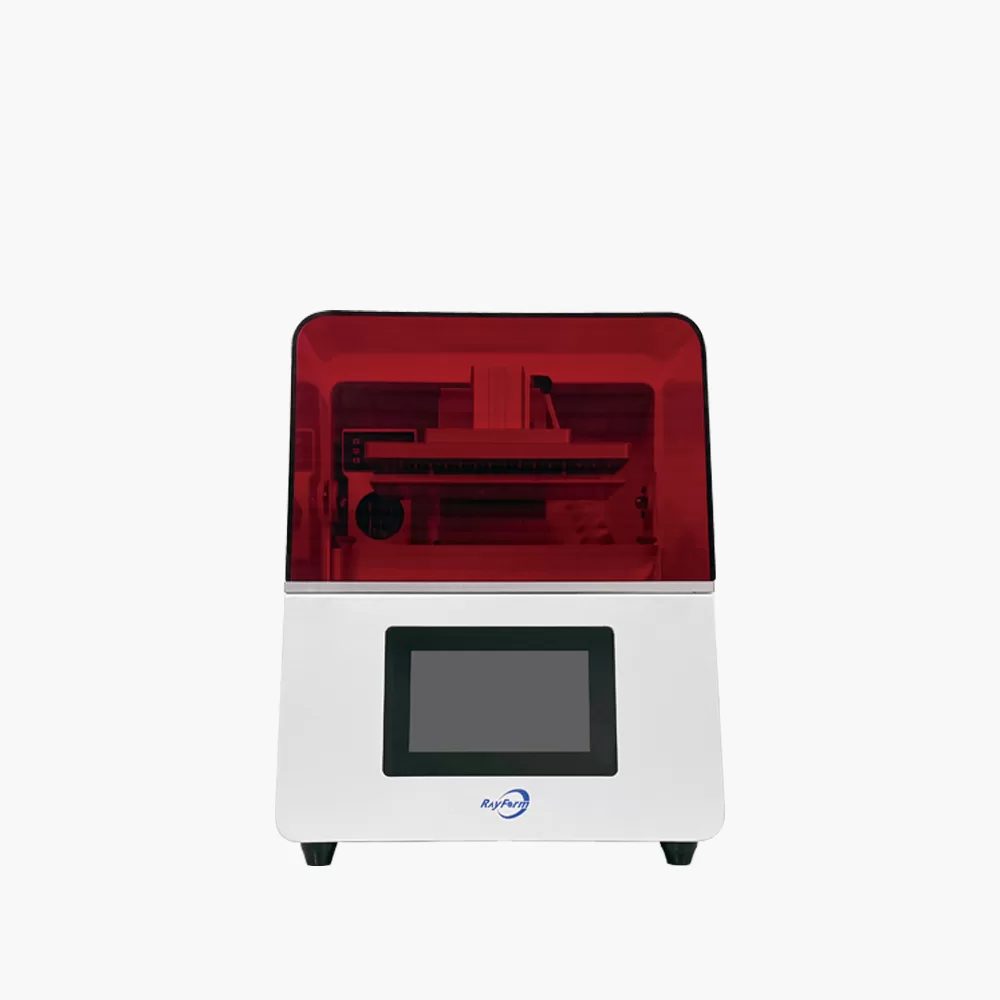

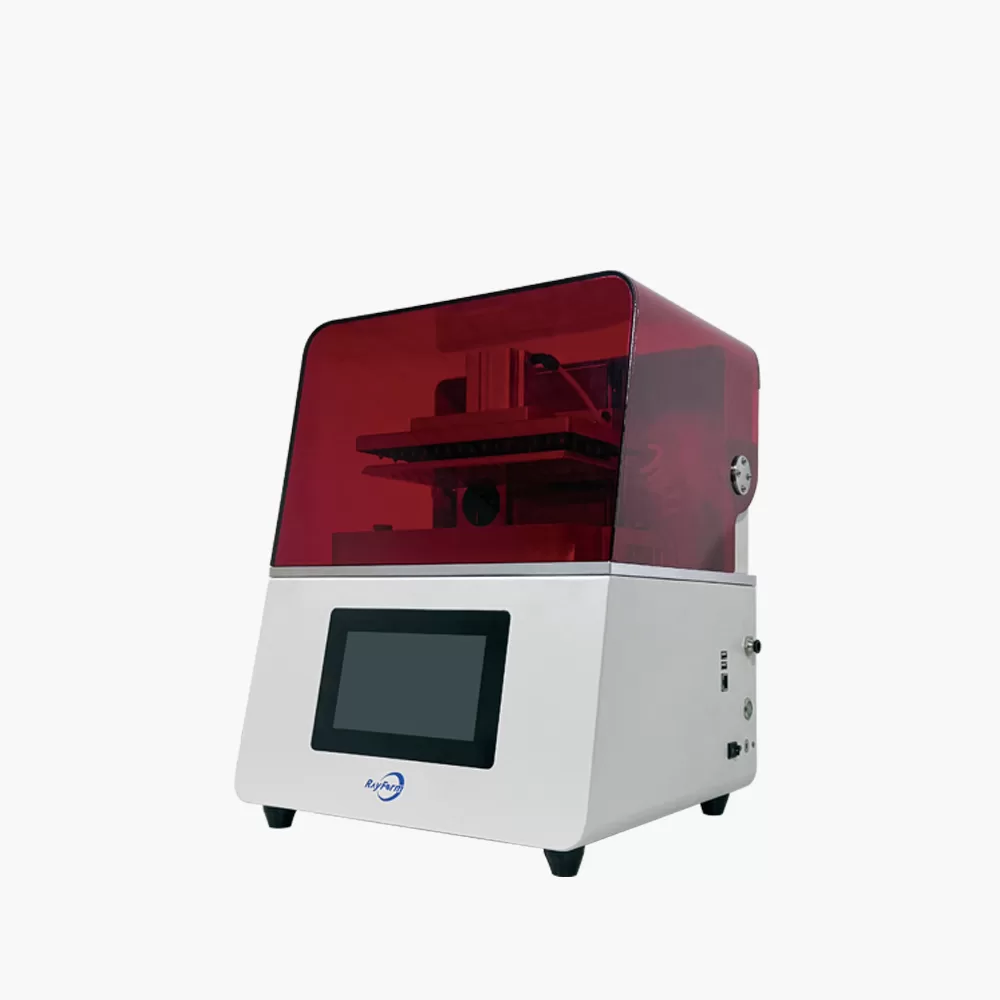

RayForm Dental 8K LCD 3D Printer

RF-3028D

RayForm Dental 8K LCD 3D Printer has high-precision and fast printing, suitable for printing dental models.

Key Features

  • Sturdy and durable, build volume 228x128x235mm
  • Adopts COB centralized light source design, the uniformity can get to 92%
  • Upgraded Ul interface, easy to operate, brings users a better operating experience
  • Unique structure of release film, reduces the peeling force, which achieves ultra high printing speed up to 80mm/h

RayForm Dental 8K LCD 3D Printer Parameters
RayForm Dental 8K LCD 3D Printer Parameters
INQUIRY
INTERESTED
Features
Specs
Application

RF-3020D 3D Printer Specification

Core Parameters
  • Build Volume228x128x235 mm (9x5x9.3 in)
  • Pixel Size29.7um
  • Accuracy30um
  • Wavelength405nm
  • TechnologyLCD (Liquid Crystal Display)
  • Resolution7680×4320 pixels
  • Layer Thickness0.025-0.1mm
Systems & Functions
  • Control SoftwareRAYFORM SOFTWARE
  • Operation SystemWin10
  • Support FormatSTL, BMP
  • ConnectivityUSB2.0, RJ45
  • LanguageEnglish, Chinese
  • Cluster ControlSupport
  • FunctionsSupport automatic repair, model cutting, hollowing, perforating, labeling
Printing
  • Optical Module8K LCD
  • Projection ModeTop-down Projection
  • Printing SpeedUp to 60 mm/hour
  • MaterialsPhotosensitive Resin
  • Resin VatReplaceable
  • Device Volume300 ML
  • Temperature Range22-28°C (71.6-82.4°F)
Basics
  • Power Input200-240 VAC, 50/60Hz
  • Rated Power128W
  • Relative Humidity<60%
  • Machine Size35x33x60 cm (13.8x13x23.6 in)
  • Machine Weight22 kg

Similar Products

More 》

RayForm Dental 4K LCD 3D Printer

RayForm Dental 4K LCD 3D Printer

Help You More

More 》

How long is the shelf life of the RayForm 3D Printing Resin?

12 months, Please store in a cool place below 25°C(77°F), away from direct sunlight. Ordinary visible light may cause the resin to polymerize and gel.

How does using resin materials through 3D printing result in better product outcomes?

RayForm has excellent engineering staff who can provide thorough guidance and comprehensive assistance to the customers who purchase our products. Contact us now!

What types of 3D printing materials do you offer?

RayForm technical team has fully considered the application scenarios in various environments. At present, we have dental-specific printing resin, and more products will be developed in the future. Please follow us website and social media.
