Dental Surgical Guide Resin is specially developed for dental medical applications. With its high resolution and detail presentation power can fit well with the patient’s jawbone and assist in precise positioning of drill bits and implants during implant surgery. RayForm resin efficiently meets various demands.

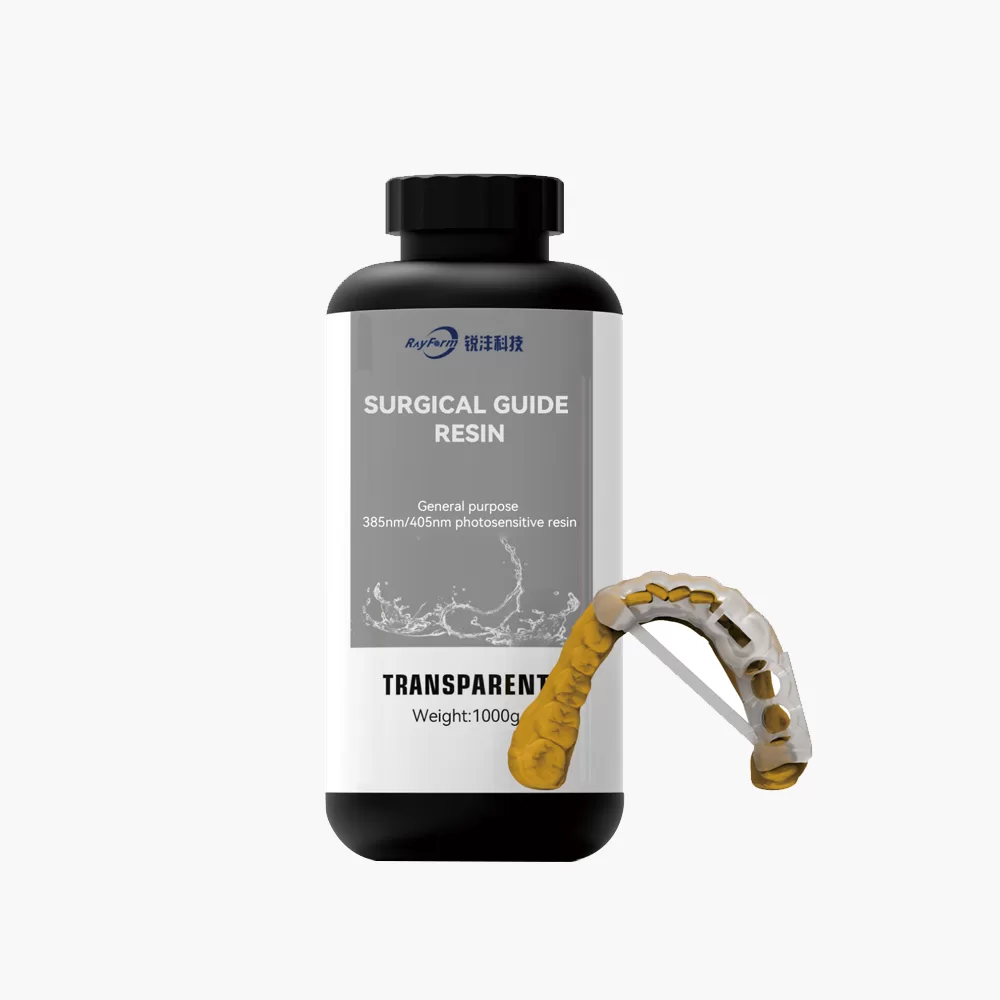

RF-DB-04 Surgical Guide 3D Printing ResinAccessories: Bio electric scooter vehicle battery
RF-DB-04 Surgical Guide 3D Printing ResinAccessories: Bio electric scooter vehicle battery

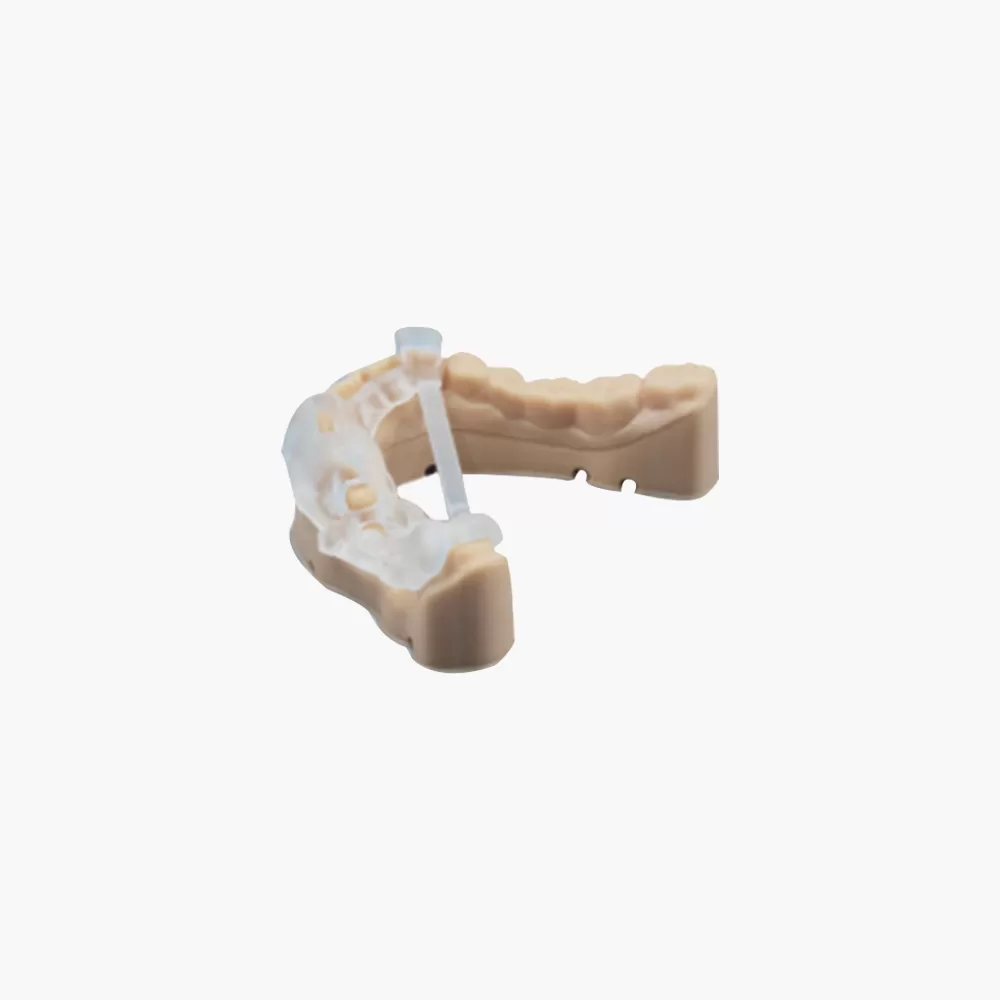

Dental Surgical Guide Model 2Accessories: Bio electric scooter vehicle battery

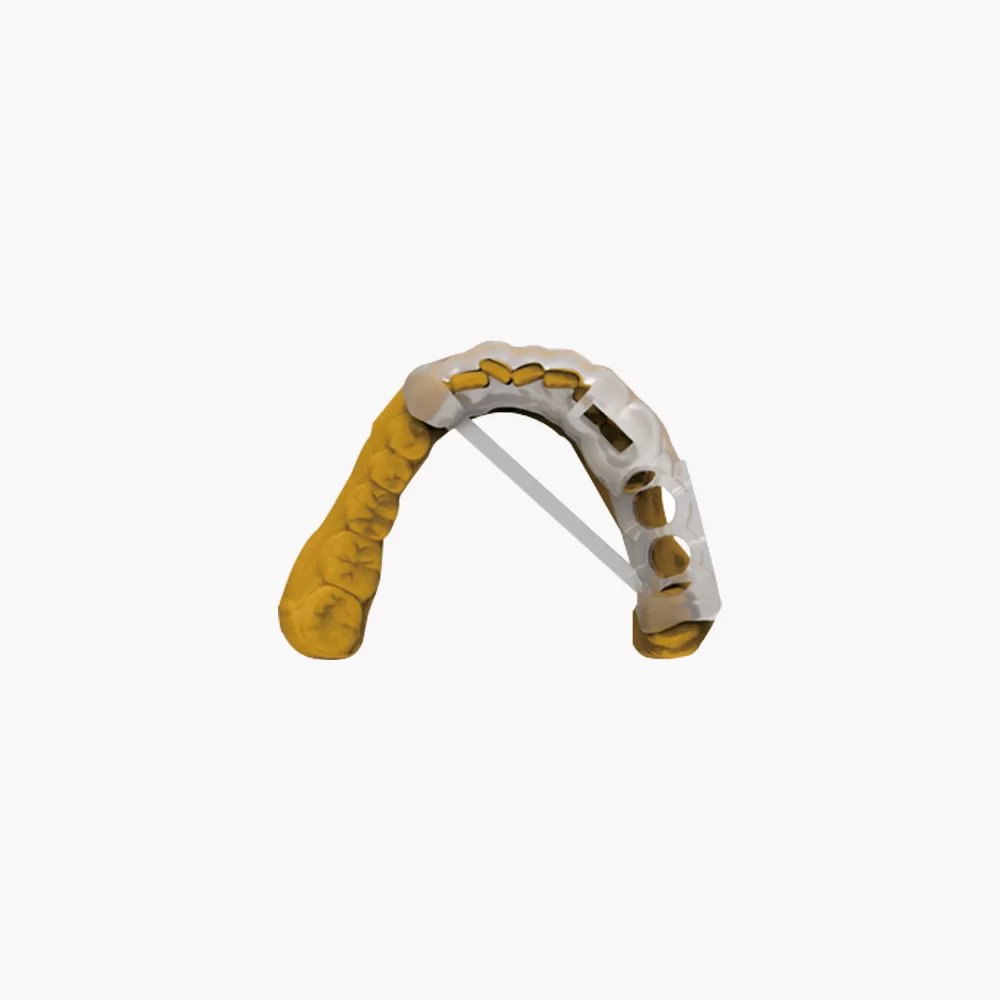

Dental Surgical Guide ModelAccessories: Bio electric scooter vehicle battery

Dental Surgical Guide Resin 3D Printing Material

RF-DB-04

Dental Surgical Guide Resin 3D Printing Material with good biocompatibility. After molding, the implant guide has a colorless and transparent appearance, which is easy to observe during the surgical process.

Key Features

  • Dimensional Stability
  • High Mechanical Stability
  • Vivid Detail Restoration
  • Biocompatible
  • High Transparency
  • Autoclaving Verified
  • Low material consumption
  • Support OEM / ODM

Basic Properties

  • Color:Transparent
  • Material: Resin
  • Specification:1000g/Bottle
  • Applicable: LCD / DLP 3D Printer

Mechanical Properties Of Surgical Guide Resin

Resin model inspection
61.4 MPaTensile Strength
1700 MPaFlexural Modulus
65.6 MPaFlexural Strength
69 °CHDT@ 0.45 MPa
13 %Elongation at Break
Physical PropertiesTypical ValueTesting Method
Density1.05-1.15 g/cm3ASTM D792
Viscosity200 mPa •sASTM D445
Hardness84 ShoreDASTM D2240
Water Sorption0.56 %ASTM D570
Notch Impact Strength29.5 J/mASTM D256
More Information

More Efficient and Successful Printing Products

Dental Surgical Guide Model design

Free Provide Surgical Guide Model Test

RayForm’s dental surgical guide resin fully compatible with third-party software (CHITUBOX Basic) and LCD / DLP 3D printers. RayForm process engineers can provide you with the best recommended parameters to help you print the required products.

Printing parameters assistance guide

Dental 3D Printing Resin Surgical Guide Model Successful Printing

Dental Surgical Guide Model Successful Printing

With the RayForm 3D printing resin modulated and the parameter debugging support, you can experience the test results of the finished product and its application the fastest. 60 minutes – 30 minutes. The 3D printing item’s time is determined by the number of layers (height). (Power by Phrozen Sonic Mini 8K S)

Efficient Time Experience

Got Dental Surgical Guide Model

Got Surgical Guide Model

RayForm developed 3D printing materials will undergo rigorous testing on numerous LCD / DLP 3D printer devices available on the market. You will get the material perfect support and even uperior printing results, meeting the 3D printing solution requirements.

Obtain the appropriate sample results

Dental 3D Printing Resin Surgical Guide Model Use

Dental 3D Printing Resin Use

After cleaning and curing equipment one-step subsequent processing. Implant plan 1:1 visualization in the patient’s mouth, achieving sub-millimeter precision positioning of the implant. Its transparent polymer material provides 360° visualization of the surgical field, while also offering dual characteristics of rigid support and elastic cushioning, ensuring stable drill guidance without damaging soft tissue.

More detailed process

In the video, we can see the efficient production demonstration of RayForm surgical guide model make in different 3D printers.

RayForm Dental Surgical Guide 3D Printing Resin

3D PRINTING MATERIALS

Dental Surgical Guide Resin

Special material for dental guides, which is slightly blue in transparency, possessesgood detail resolution,good assembly dimensional accuracy and long-term stability. Reduces the time required for complex implant surgery by 50% and effectively avoids neurovascular risks. The unique pore design of the guide facilitates intraoperative cooling and irrigation. Combined with the unique sterilization adaptability of 3D printing, it has become an indispensable “smart navigation device” for modern digital implantology, making the concept of minimally invasive, precise, and safe implantology a reality.

Win-Win Cooperation With RayForm

RayForm offers customers the most comprehensive services, ranging from fully compatible material development support to equipment automation solutions, making it easier for customers to achieve efficient and successful printing.

Contact Us

Help You More

How long is the shelf life of the RayForm 3D Printing Resin?

12 months, Please store in a cool place below 25°C(77°F), away from direct sunlight. Ordinary visible light may cause the resin to polymerize and gel.

How does using resin materials through 3D printing result in better product outcomes?

RayForm has excellent engineering staff who can provide thorough guidance and comprehensive assistance to the customers who purchase our products. Contact us now!

What types of 3D printing materials do you offer?

RayForm technical team has fully considered the application scenarios in various environments. At present, we have dental-specific printing resin, and more products will be developed in the future. Please follow us website and social media.
